Temperature Control Units : Water Circulating

Water circulating Temperature Control Units provide temperature stablized water to the process application for temperature control. Sentra Series temperature control units offer temperature control from 30°F to 300°F.

These units are used to preheat industrial processes to the desired operating temperature by recirculating water through the process and engaging the unit’s electric immersion heater. After reaching the operating temperature, the Sentra® can continue to add heat or become a cooling device by precisely exchanging & mixing cooling water* with the recirculated water to maintain tight temperature control.

Water Temperature Control Units by Advantage Engineering

For Temperatures Up To 250°F

VE Series

VE Series Control Instrument

Microprocessor control with To Process temperature display, selectable setpoint temperature display, status indicators for Power, Pump, Heat & Cool

Available with

• Heaters : 10 - 34 kW •

• Pump : ¾ - 7½ HP •

• Flow : 35 - 100 GPM •

• Cooling Valve : Solenoid •

G Series

G Series Control Instrument

Simple menu driven LCD display offering heating and cooling indication, selectable SPI or Modbus RTU with optional Modbus TCP.

Available with

• Heaters : 10 - 34 kW •

• Pump : ¾ - 7½ HP •

• Flow : 35 - 100 GPM •

• Cooling Valve : AVT Modulating •

Temptender Series

Temptender Series Control Instrument

Full color touch interface with 15 screens of custom set-up, operation & system information, selectable SPI or Modbus RTU with optional Modbus TCP.

Available with

• Heaters : 10 - 34 kW •

• Pump : ¾ - 7½ HP •

• Flow : 35 - 100 GPM •

• Cooling Valve : AVT Modulating •

Legacy Units (displayed for reference only : these units are not in production)

LE Series

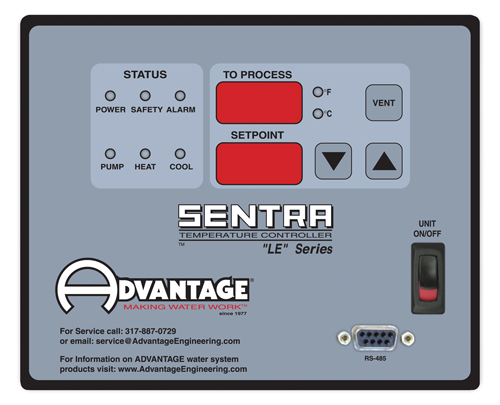

LE Series Control Instrument

Two large display windows with continuous display of To Process and Setpoint temperatures.

Available with

• Heaters : 10 - 34 kW •

• Pump : ¾ - 7½ HP •

• Flow : 35 - 100 GPM •

• Cooling Valve : Solenoid •

HE Series

HE Series Control Instrument

Four display windows with continuous display of To Process temperature, Setup parameters, unit Flow and unit Capacity.

Available with

• Heaters : 10 - 34 kW •

• Pump : ¾ - 7½ HP •

• Flow : 35 - 100 GPM •

• Cooling Valve : AVT Modulating •

For Temperatures Up To 300°F

G300 Series

G300 Series Control Instrument

Simple menu driven LCD display offering heating and cooling indication, selectable SPI or Modbus RTU with optional Modbus TCP.

Available with

• Heaters : 10 - 34 kW •

• Pump : ¾ - 7½ HP •

• Flow : 35 - 100 GPM •

• Cooling Valve : Solenoid •

T300 Series

T300 Series Control Instrument

Full color touch interface with 15 screens of custom set-up, operation & system information, selectable SPI or Modbus RTU with optional Modbus TCP.

Available with

• Heaters : 10 - 34 kW •

• Pump : ¾ - 7½ HP •

• Flow : 35 - 100 GPM •

• Cooling Valve : AVT Modulating •

Legacy Units (displayed for reference only : these units are not in production)

300 Series

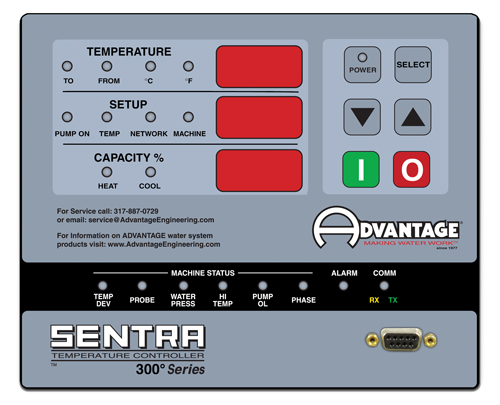

300 Series Control Instrument

Three large display windows with continuous display of To Process temperature, Setup parameters and unit Capacity.

Available with

• Heaters : 10 - 34 kW •

• Pump : ¾ - 7½ HP •

• Flow : 35 - 100 GPM •

• Cooling Valve : Solenoid •
