Water Chiller Portable | 15 Ton | Air-Cooled

Model MGD-15AFF

Click Here for An Immediate Factory Pricing Quote For the MGD-15AFF ▶

Pricing Is Now On Display

Product Overview

Portable chillers use mechanical refrigeration to cool recirculated fluids that support industrial process cooling applications.
Portable chillers include an internal pumping system and reservoir system.
Portable chillers can be moved between use points as needed.
Air-Cooled chillers use indoor ambient air to dissipate the heat from the refrigeration system.

Price is Loading

Specifications

Specification Notes:

Since product innovation and improvement is our constant goal, all features and specifications are subject to change without notice or liability. Selection of certain optional features may change listed specifications.
Tons capacity at 12,000 BTU/ton per hour @ 50°F LWT @ 115°F condensing temperature. Capacities may be +/- 5% as reserved by the compressor manufacturer. Operating at temperatures below 50° will reduce chiller capacity. The minimum recommended operating temperature when no glycol is used is 48°F.
Design ambient conditions. Loss of capacity and/or difficulty operating will occur at higher ambients. Minimum recommended ambient is 60°F.
Full load amps are higher than run load amps and must be used for sizing disconnects and supply wiring.
Approximate unit weight crated for shipment.
See Product Warranty Statement W-700 for details on warranty.

Features

Options

Control Instrument

MG Series Control Instrument

Graphic LCD display with Intuitive Navigation
Digital refrigerant pressure display
Digital water pressure display
Plain language error message reporting
Controls hot gas bypass or digital scroll compressor for Capacity Control
Alarm output with audible signal
Industry 4.0 ready with Modbus RTU or SPI communication included, Modbus TCP communication optional
High water temperature shut down feature

Support Documents

Literature

1.6 MB

Updated on March 2019

Manual

5.4 MB

Updated on August 8, 2021

Product Image

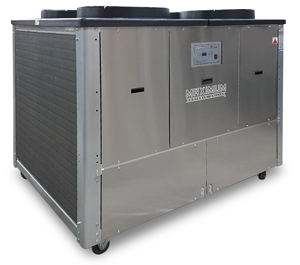

portable water chiller Model MGD-15AFF Advantage

Model MGD-15AFF shown. Image shown is typical. Actual unit appearance will vary according specifications and options.
